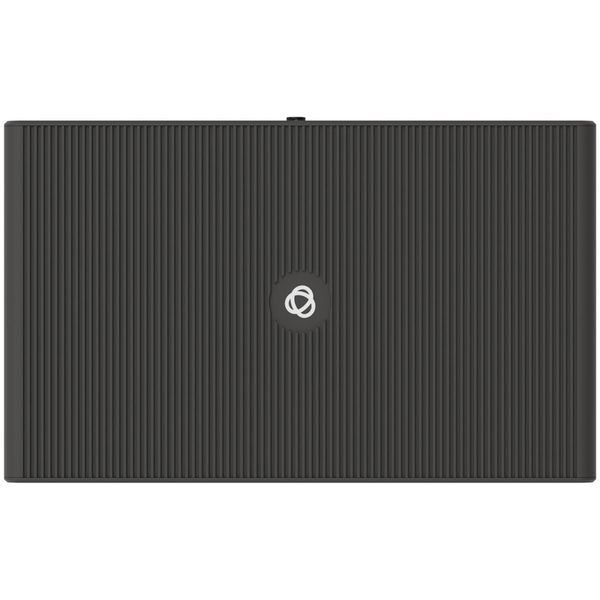

Kramer SWT3-21-HU-TR 2x1 4K60 Switc

2-in-1 4K60 HDMI Switcher

• Auto-switcher with one USB-C and one HDMI/USB input, one HDMI output, and HDBaseT 3.0 technology for long-range transmission
• The HDBaseT 3.0 connection can be configured either as a transmit (output) or receive (input) connection
• Transmits 4K60Hz (4:4:4) HDMI, USB 2.0, RS-232, IR and I/O signals via a twisted-pair cable up to 40 metres long

Technical specifications:

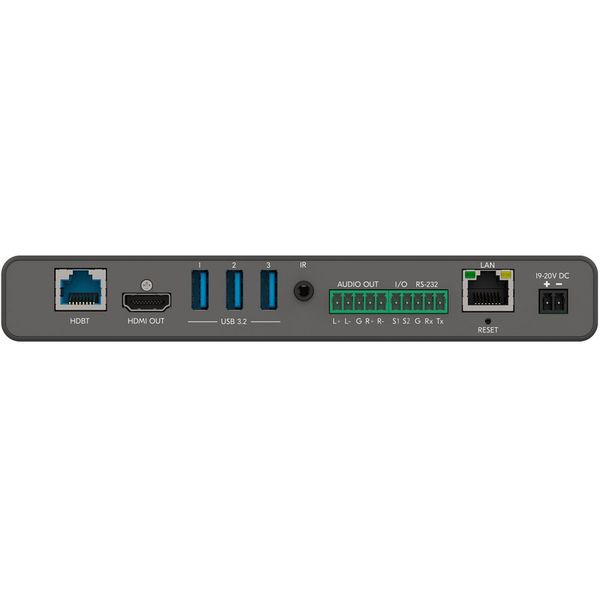

• Inputs: 1x DP Alt Mode & PD 3.0 USB-C socket / 1x HDMI socket / 1x HDBT RJ-45 socket (configurable direction)
• Outputs: 1x HDBT RJ-45 socket (configurable direction) / 1x HDMI socket / 1x balanced stereo audio line-out via 5-pin terminal block

Data ports:

• 2x USB 3.2 Host: Via USB-C and USB-B sockets / 3x USB 3.2 Device: Via USB Type-A sockets / 1x RS-232: Via 3-pin terminal block / 1x IR: Via 3.5 mm mini-jack for IR extension / 2x GPIO: Via 2-pin terminal block
• Extension cable: Range: Up to 40 m when using Kramer HDBaseT cables
• Standards compliance: HDBaseT 3.0

Video:

• Max. data rate: 18 Gbit/s bandwidth (6 Gbit/s per graphics channel)
• Max. resolution: 4K at 60 Hz (4:4:4)
• Copy protection: HDCP 2.3
• HDMI support: Deep Colour, 3D, HDR in accordance with the HDMI 2.0b specification

USB features:

• USB 3.2 data transfer rate: up to 10 Gbit/s
• Integrated USB hubs: 1
• Compliance with standards: USB 3.2 Gen 2, 2.0 and 1.1
• Enhanced USB: USB 2.0 data rate: Up to 480 Mbit/s
• Data transfer rate: Up to 300 Mbit/s
• Compliance with standards: USB 2.0, 1.1 and 1.031
• Extended RS-232:
• Baud rate: 300 to 115200
• Power supply: 20 V DC power supply adaptor
• Max. current consumption: 6 A
• Max. power:
• USB-C charging function: max. power 60 W (only when used with a 20 V mains adaptor)
• USB device charging: max. total current 2 A

Housing:

• Size: Mega Tool
• Material: Aluminium
• Cooling: Fan
• Dimensions: 19 x 11.6 x 2.7 cm
• Weight: approx. 0.9 kg
• Includes a 20 V mains power adaptor, cable and USB-C multi-signal cable
